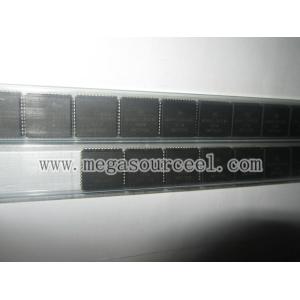

MCU Microcontroller Unit MC68HC711D3CFN3 - Motorola, Inc - Microcontrollers

Quick Detail:

Microcontrollers

Description:

This section depicts the general characteristics and features of the MC68HC711D3 high-density complementary metal-oxide semiconductor (HCMOS) microcontroller unit (MCU).

The MC68HC711D3 contains highly sophisticated on-chip peripheral functions.

This high-speed, low-power programmable read-only memory (PROM) MCU has a nominal bus speed of 3 MHz. The fully static design allows operations at frequencies down to dc.

The MC68HC11D3 and MC68HC11D0 are read-only memory (ROM) based high-performance microcontrollers (MCU) based on the MC68HC11E9 design.

The MC68L11D0 is an extended-voltage version of the MC68HC11D0 that can operate in applications that require supply voltages as low as 3.0 V. The information in this document pertains to all the devices with the exceptions noted in Appendix A. MC68HC11D3 and MC68HC11D0 and Appendix B. MC68L11D0.

Applications:

• Expanded 16-bit timer system with four-stage programmable prescaler

• Non-return-to-zero (NRZ) serial communications interface (SCI)

• Power-saving stop and wait modes

• 64 Kbytes memory addressability

• Multiplexed address/data bus

• Serial peripheral interface (SPI)

• 4 Kbytes of one-time programmable read-only memory (OTPROM)

• 8-bit pulse accumulator circuit

• 192 bytes of static random-access memory (RAM) (all saved during standby)

• Real-time interrupt (RTI) circuit

• Computer operating properly (COP) watchdog system

Specifications:

Competitive Advantage:

Warranty :180days for all goods

Free shipping:Order over $600 win a free shipment fee:goods weight below 3Kg.

Mega Source Electronics stocks components ready to ship. Hard to find, obsolete and highly allocated integrated circuits and semiconductors are all can be found by us.

Mega Source Electronics has established a well-developed logistics system and global logistics network, which can guarantee our service very quick, convenient and efficient.
